DESCRIZIONE

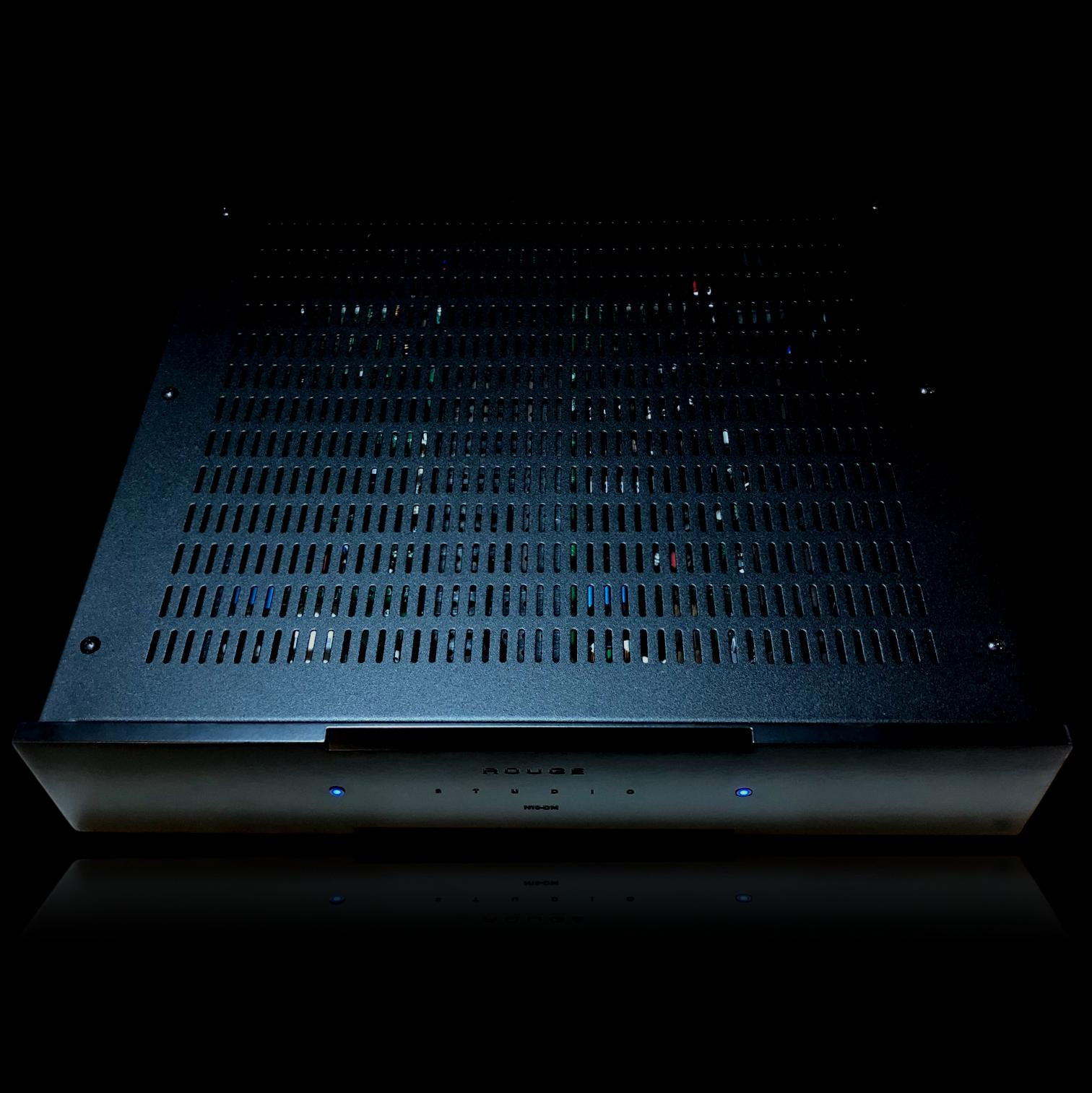

Amplificatore finale stereo in Classe D basato sul modulo ICEpower 1200AS2 che utilizza il nuovo chip ICEedge. Alimentazione SMPS integrata con PFC (power factor correction) combinata con due amplificatori in classe D di elevata qualità. Lo STUDIO N-10 è un amplificatore finale potente, trasparente, dettagliato e con un grana musicale incredibile. Un vero amplificatore high-end ad un prezzo strepitoso.
Gli ingressi sono bilanciati ma è prevista la possibilità di aggiungere una scheda di connessione passiva che consente di avere sul pannello posteriore connettori sia XLR che RCA.


SPECIFICHE TECNICHE
-
Max Output power: 2x700W (4Ω), 2x600W (8Ω)
-
Continuous output power two channels driven: 2x145W (4Ω)
-
Distorsion THD + N (1W/1kHz) = 0.005 %
-
Minimum load impedance = 2.7 Ω
-
Dynamic range = 129db
-
SNR = 135db
-
Frequency Response 3hz-50Khz
-
Voltage Gain 25,8db
-
Input Impedance 38Kohm
-
Output idle noise (A) = 25mV
-
Maximum output current 38A



DIMENSIONI: 435x300x80mm
PESO: 7Kg
INPUT: 2 XLR
FUSIBILE: 250V/6A (5x20mm)
DUAL MONO
L'alimentazione integrata asimmetrica del modulo Icepower1200AS2 comporta che il massimo della potenza erogabile si ottiene utilizzando solo uno dei due canali amplificatori in classe D (che in tal modo sfrutta tutta la corrente fornita dalla PSU). Pertanto, per chi necessita di tale maggiore potenza e dinamica, realizziamo lo STUDIO N-10 DM, un dual mono basato su due moduli ICEpower1200AS1 (versione mono del modulo ICEpower1200AS2) dotati di alimentazione SMPS integrata combinata con un amplificatore in classe D di elevata qualità.

SPECIFICHE TECNICHE
-
Max Output power: 2x1200W (4Ω), 2x600W (8Ω)
-
Continuous output power: 2x290W (4Ω)
-
Distorsion THD + N (1W/1kHz) = 0.005 %
-
Minimum load impedance = 2.7 Ω
-
Dynamic range = 129db
-
SNR = 135db
-
Frequency Response 3hz-50Khz
-
Voltage Gain 25,8db
-
Input Impedance 38Kohm
-
Output idle noise (A) = 25mV
-
Maximum output current for each channel = 38A


DIMENSIONI: 435x400x80mm
PESO: 9Kg
INPUT: 2 XLR
FUSIBILE: 250V/10A (5x20mm)
